• Country
• United States of America (USA)

• Manufacturer / Brand
• Elgin Radio Division; Maspeth, (NY)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 311679

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

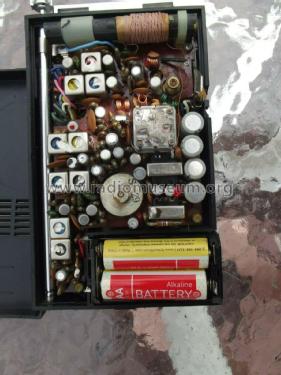

• Model: AM-FM 12 Transistor R-1400 - Elgin Radio Division; Maspeth,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 3.5 x 6.125 x 1.75 inch / 89 x 156 x 44 mm

• Notes

• Made in Japan

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 81)

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
