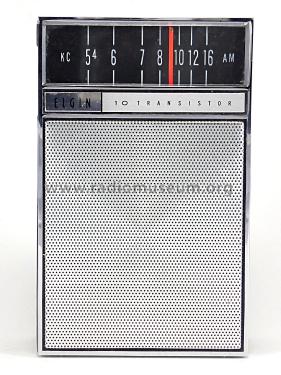

Elgin R-800
Elgin Radio Division; Maspeth, (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Elgin Radio Division; Maspeth, (NY)
- Year
- 1964 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303686
eBay item number:256087237755
eBay item number:256087237755
eBay item number:256087237755
eBay item number:256087237755
eBay item number:256087237755
eBay item number:256087237755
eBay item number:256087237755
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Elgin R-800 - Elgin Radio Division; Maspeth,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 71 x 113 x 34 mm / 2.8 x 4.4 x 1.3 inch
- Notes
-
Made in Japan. Has an unusual placement of a battery compartment for a pocket sized radio. The battery compartment is molded into the back half of the chassis with the compartment door on the side of the radio.
- Literature/Schematics (1)
- Collector's Guide To TrR1 Bunis trans.94 (Model info on page 80)
- Literature/Schematics (2)
- Transistor Radios (Model info on page 40)
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
