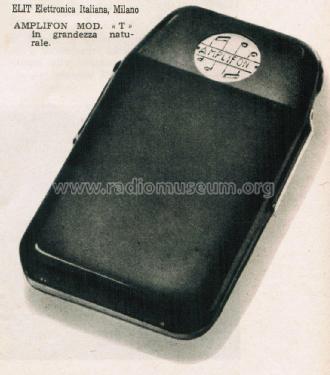

Amplifon T

ELIT, Elettronica Italiana; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1950 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 337627

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Valves / Tubes
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1,5 & 22,5 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Amplifon T - ELIT, Elettronica Italiana;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 57 x 105 x 17 mm / 2.2 x 4.1 x 0.7 inch
  • Notes

  • Apparecchio per deboli di udito costituito da 3 valvole subminiatura ed alimentato a batterie.
    L'amplificazione è di 60 dB controllata dal regolatore di volume.

  • Net weight (2.2 lb = 1 kg)
  • 0.120 kg / 0 lb 4.2 oz (0.264 lb)
  • Mentioned in

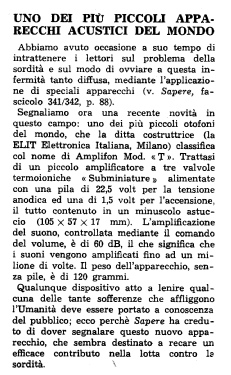

  • "Sapere" Ulrico Hoepli editore, numeri 375/376 31 agosto 1950.
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
