FM Transmitter TMF 4A02
ELIT, Elettronica Italiana; Milano
- Country
- Italy
- Manufacturer / Brand
- ELIT, Elettronica Italiana; Milano
- Year
- 1981 ?
- Category
- Commercial Transmitter (TX not Transceiver)
- Radiomuseum.org ID
- 271029
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC 220 / DC 48 Volt
- Loudspeaker
- - - No sound reproduction output.
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

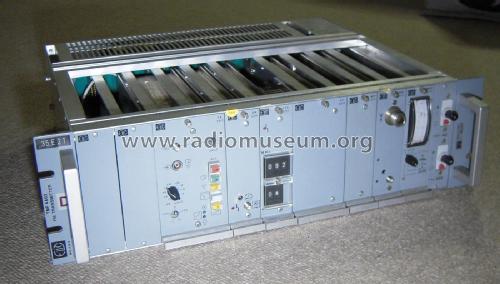

- Model: FM Transmitter TMF 4A02 - ELIT, Elettronica Italiana;
- Shape
- Rack
- Dimensions (WHD)
- 484 x 135 x 435 mm / 19.1 x 5.3 x 17.1 inch
- Notes
-
Frequency range: 87.5 - 108MHz (selectable in 25kHz steps), output power 2W (adjustable 0.5W - 2W), balanced monophonic input, separate input for data services (eg. RDS, encoder not included), weighted audio signal to noise ratio better than 68dB, audio distortion less than 0.3%, HF harmonics at least 60dB below the unmodulated carrier amplitude.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Stefan Heimers. See "Data change" for further contributors.
