Stereo Relay Receiver RMF-130/S

• Country
• Italy

• Manufacturer / Brand
• ELIT, Elettronica Italiana; Milano

• Year
• 1968

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 114306

• Picture

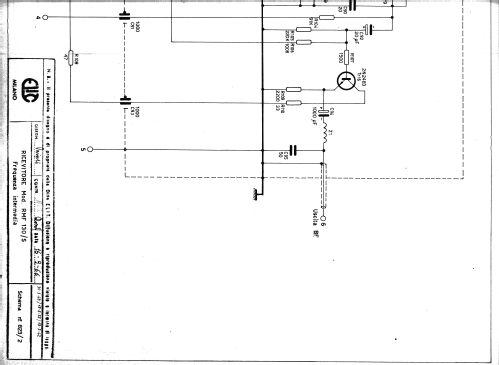

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 45

• Semiconductors
• 2N918 2N3478 BF167 2N2483 2N2905 2N1711 2N3242 ASZ18 2N3055 OA90 AA119 OA200 BAY74 ZF6,2 ZF9,1 1N4006

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Tuned circuits
• 25 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Relay Receiver RMF-130/S - ELIT, Elettronica Italiana;

• Shape
• Rack

• Dimensions (WHD)
• 520 x 202 x 280 mm / 20.5 x 8 x 11 inch

• Notes

• Stereo Relay Receiver covering 87,5 - 108 MHz, FM.
  Multiplex stereo output to control a FM transmitter for re-broadcasting.
  Additional monaural output.

  Semiconductors listed once per type.

  UKW - Ballempfänger, eingesetzt u.a. von der Schweizer PTT und der RAI.
  Multiplex-Stereo-Ausgang zur Modulation eines FM-Senders zur Wieder-Ausstrahlung.
  Zusätzlicher Mono-Ausgang.

  Halbleiter jeweils einmal pro Typ gelistet.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)
