• Country
• Germany

• Manufacturer / Brand
• Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14397

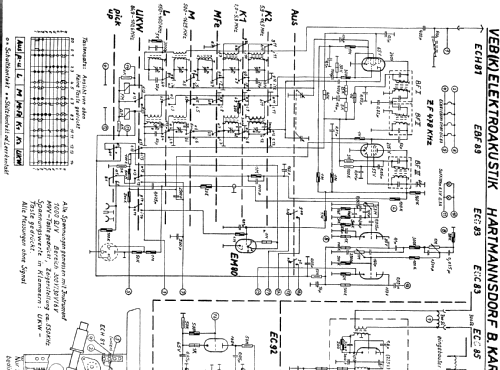

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC85 EF89 EF89 EF89 EM80 EAA91 ECH81 EBF89 ECC83 EC92 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 478 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

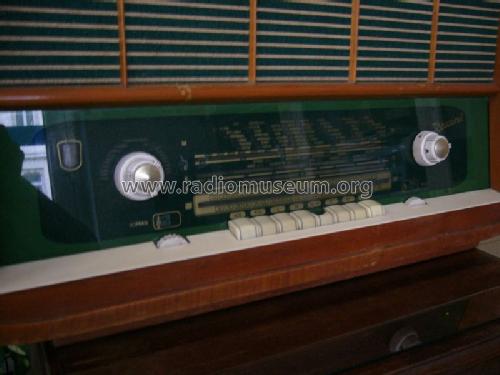

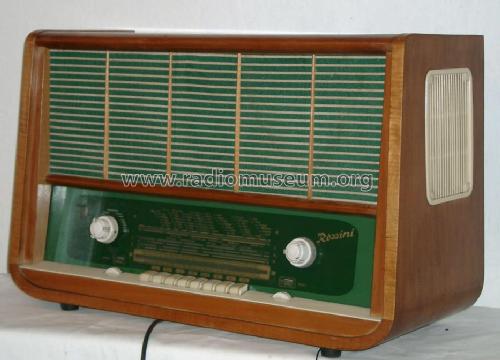

• Model: Rossini 5801 [1958] - Elektroakustik Hartmannsdorf,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 735 x 435 x 310 mm / 28.9 x 17.1 x 12.2 inch

• Notes
• Röhren nur teilweise aufgeführt. Gegentakt-Endstufe.

• Net weight (2.2 lb = 1 kg)
• 24.5 kg / 53 lb 15.4 oz (53.965 lb)

• Price in first year of sale
• 870.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 3

• Literature/Schematics (1)
• Radio und Fernsehen, 1959, Heft 23, Seiten 726-728

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
