AM/FM Tuner MT 4001
Elowi; Locher KG, Ernst; Kenzingen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Elowi; Locher KG, Ernst; Kenzingen/Schwarzwald
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284223

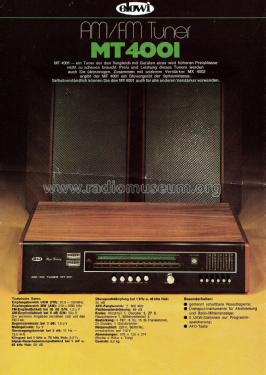

aus elowi Katalog
- Number of Transistors
- 19
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 15 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Tuner MT 4001 - Elowi; Locher KG, Ernst;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 579 x 125 x 274 mm / 22.8 x 4.9 x 10.8 inch
- Notes
-
UKW-Mischteil mit Feldeffekt-Transistoren (FET).
Weitere Bestückung: 6 IC, 23 Dioden und 1 Gleichrichter.
- Net weight (2.2 lb = 1 kg)
- 6.6 kg / 14 lb 8.6 oz (14.537 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funk-Technik (FT) (21/1973, S. 799 / Messebericht Berlin)
- Author
- Model page created by Rainer Siebert. See "Data change" for further contributors.
