- Country
- Germany
- Manufacturer / Brand
- Elowi; Locher KG, Ernst; Kenzingen/Schwarzwald
- Year
- 1969 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 88533

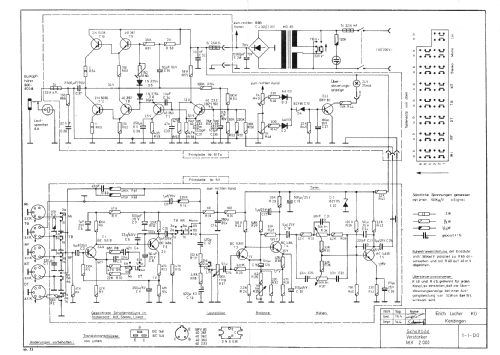

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 32 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

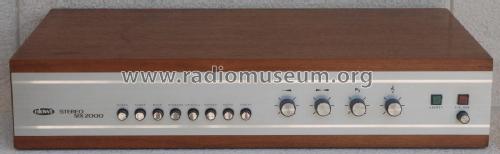

- Model: MX2000 - Elowi; Locher KG, Ernst;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 542 x 105 x 274 mm / 21.3 x 4.1 x 10.8 inch
- Notes
-

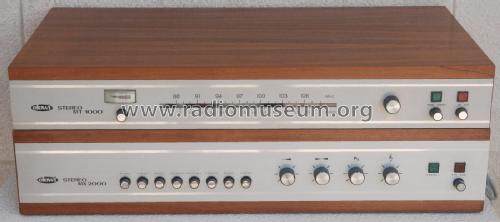

Dioden: 9; Verstärker kann durch mitgelieferte Verbindungsschienen zu einer Einheit mit Tuner MT2000 verbunden werden.
Halbleiter: nur einmal pro Typ.
- Net weight (2.2 lb = 1 kg)
- 9.6 kg / 21 lb 2.3 oz (21.145 lb)
- Mentioned in
- High Fidelity Jahrbuch Katalog 1969
- Author
- Model page created by Georg Richter. See "Data change" for further contributors.
