Melodiya 2 {Мелодия 2}
Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
- Country
- Bulgaria
- Manufacturer / Brand
- Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276689
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org

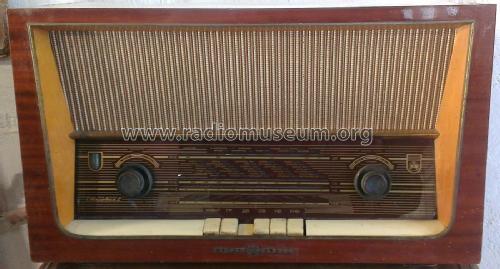

- Model: Melodiya 2 {Мелодия 2} - Elprom KB Kliment Voroshilov
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 585 x 345 x 250 mm / 23 x 13.6 x 9.8 inch
- Author
- Model page created by Justo Puertas-Paule. See "Data change" for further contributors.
- Other Models
-
Here you find 66 models, 61 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
