• Country
• Bulgaria

• Manufacturer / Brand
• Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151129

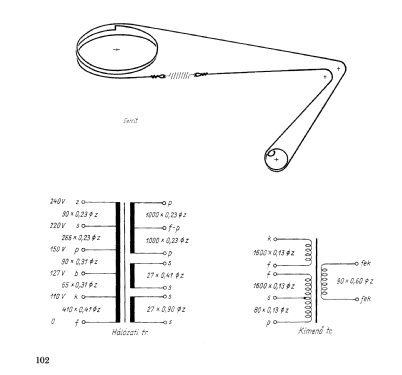

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Miskolc A2 - Elprom KB Kliment Voroshilov

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 653 x 406 x 350 mm / 25.7 x 16 x 13.8 inch

• Notes

• Turntable chassis: Supraphon 4 speed, H 20-1.

  Pick-up: Supraphon VK051

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 3,100.00 HUF

• Source of data
• Radio es Televizio Vevö Keszülekek, 1960-63

• Literature/Schematics (1)
• -- Collector info (Sammler)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
