Pioner - Пионер PIV54-1 I

• Country
• Bulgaria

• Manufacturer / Brand
• Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225758

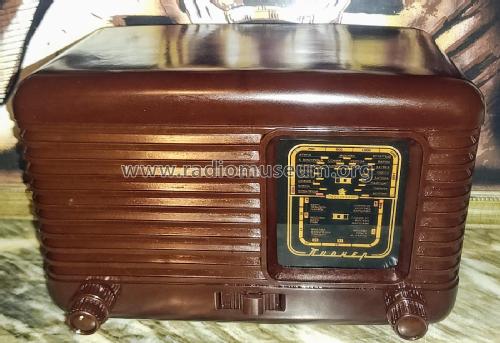

• Picture

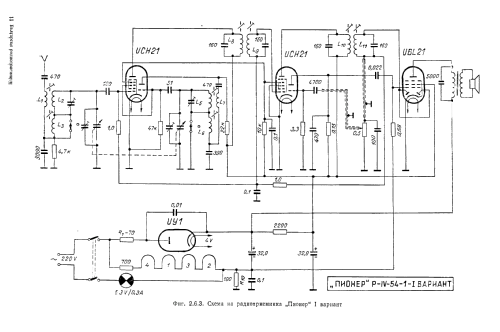

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pioner - Пионер PIV54-1 [I] - Elprom KB Kliment Voroshilov

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 210 x 150 mm / 12.2 x 8.3 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 720.00 BGN

• Mentioned in
• book "Bulgarian Radio Receivers"

• Author
• Model page created by Simeon Nikolov. See "Data change" for further contributors.
