• Country
• Germany

• Manufacturer / Brand
• Elta GmbH, Rödermark

• Year
• 2002 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 308596

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

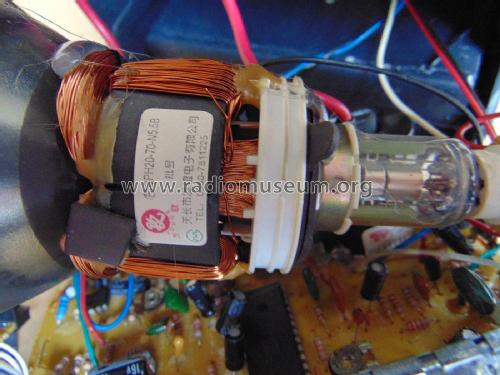

• Valves / Tubes
• 14SX3Y4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 230 AC / 12 DC / C: 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

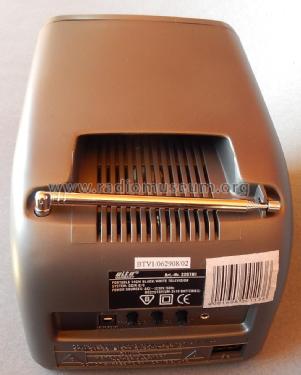

• Model: 14cm Black/White Televison Best.-Nr. 2207N1 - Elta GmbH, Rödermark

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 155 x 155 x 205 mm / 6.1 x 6.1 x 8.1 inch

• Net weight (2.2 lb = 1 kg)
• 1.884 kg / 4 lb 2.4 oz (4.15 lb)

• Author
• Model page created by Oskar Elm. See "Data change" for further contributors.
