Air Empress 948
Eltra; Frederiksberg
- Country
- Denmark
- Manufacturer / Brand
- Eltra; Frederiksberg
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 297666
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; ZF/IF 444/10900 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 4 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Empress 948 - Eltra; Frederiksberg
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 675 x 420 x 300 mm / 26.6 x 16.5 x 11.8 inch
- Notes
-

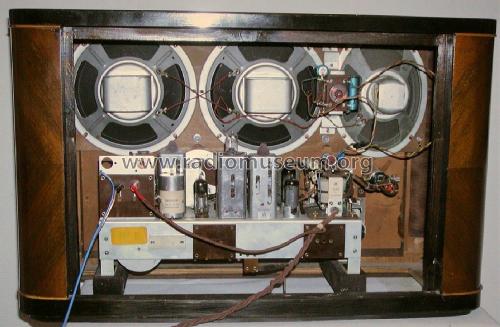

This is a 3 speaker set with 2 bass units and an elliptical treble/mid range unit.
The set was delivered with one out of 3 possible power supplies. 220V AC/DC, 127V AC/DC, 127V DC only or 110V AC/DC. The power supplies plug into an octal tube socket at the top of the chassis.
Also the optionalFM tuner that resembles a FM can with the UAA91 dectector tube on top of it is pluggable.
The phono input is matched to the signal source with a pluggable adapter for high or low impedance phono cartrige.
- Net weight (2.2 lb = 1 kg)
- 15.8 kg / 34 lb 12.8 oz (34.802 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Egil Hansen. See "Data change" for further contributors.
