• Country
• Denmark

• Manufacturer / Brand
• Eltra; Frederiksberg

• Year
• 1956 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339913

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UM80 UL41

• Number of Transistors

• Semiconductors
• E220C120

• Main principle
• Superheterodyne (common); ZF/IF 444/10900 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

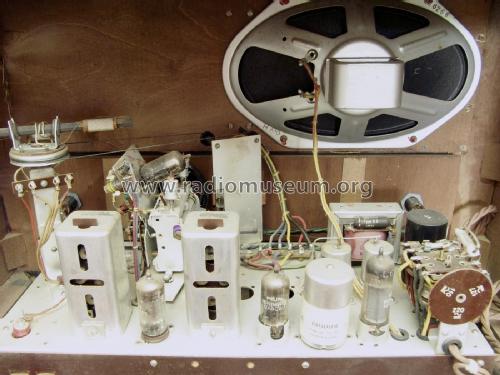

• Model: Air Prince 966 - Eltra; Frederiksberg

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 370 x 28 mm / 24 x 14.6 x 1.1 inch

• Notes

• Rotary ferrite rod antenna.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wilhelm Siepe. See "Data change" for further contributors.
