Bella Musica 1020
Eltra; Frederiksberg
- Country
- Denmark
- Manufacturer / Brand
- Eltra; Frederiksberg
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298320

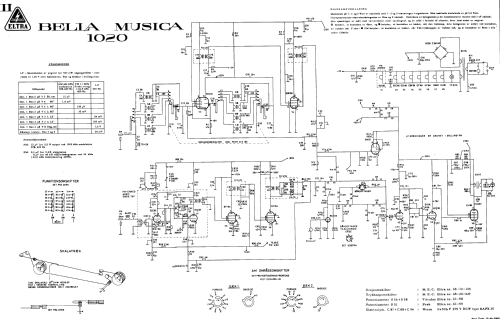

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- 1
- Main principle
- Superheterodyne (common); ZF/IF 444/11000 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bella Musica 1020 - Eltra; Frederiksberg
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 490 x 165 x 265 mm / 19.3 x 6.5 x 10.4 inch
- Notes
-
The set came with an external 3.2 ohm speaker.
- Net weight (2.2 lb = 1 kg)
- 8.630 kg / 19 lb 0.1 oz (19.009 lb)
- Author
- Model page created by Egil Hansen. See "Data change" for further contributors.
