• Country
• Poland

• Manufacturer / Brand
• Unitra ELTRA; Zaklady Radiowe; Bydgoszcz

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107050

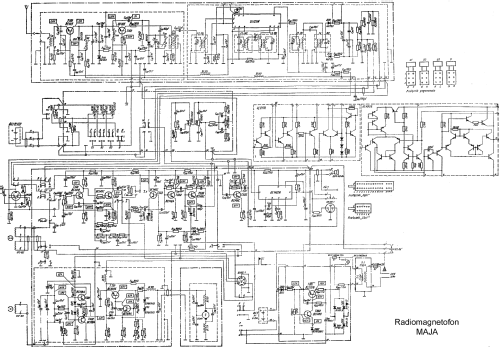

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• BF195 BF195 BC413 BC148 BC148 BC148 BC148 BC149 BC148 BC211 BC148 BC313 BC148 BC158 UL1211 UL1492

• Main principle
• Superheterodyne (common); ZF/IF 10 700 kHz

• Tuned circuits
• 8 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage

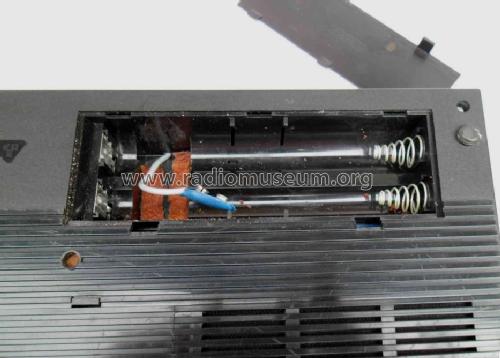

• Line / Batteries (any type) / 220 / 6 ×1,5 + 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Maja - Unitra ELTRA; Zaklady Radiowe;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 200 x 80 mm / 12.8 x 7.9 x 3.1 inch

• Notes
• UKW 66-73 MHz, 3 Vorwahltasten (Speisung aus 9V Baterie!)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
