• Country
• Germany

• Manufacturer / Brand
• ELV Elektronik AG; Leer (Ostfriesland)

• Year
• 2005

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 316234

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC848 BF996 BFS17

• Main principle
• Transmitter

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit. / DC: 15-24 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

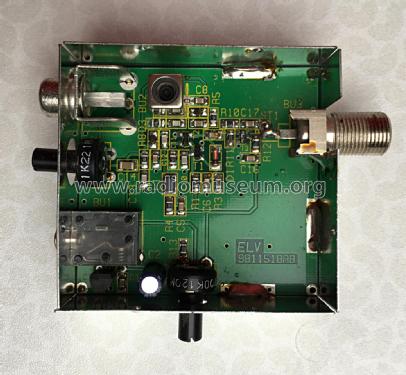

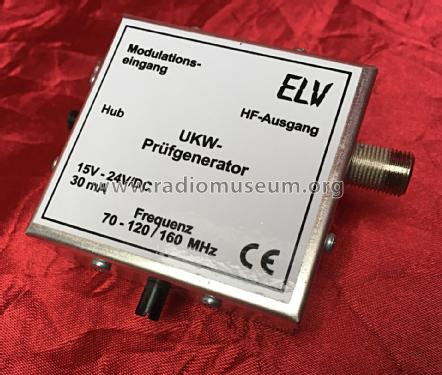

• Model: UKW-Prüfgenerator - ELV Elektronik AG; Leer

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 58 x 57 x 24 mm / 2.3 x 2.2 x 0.9 inch

• Notes

• UKW-Prüfgenerator stellt FM-modulierbare Signale im Frequenzbereich von 70-160 MHz mit definierten Amplituden zur Verfügung.

  • Frequenzbereich: 70-160 MHz
  • Modulation: FM, Hub einstellbar
  • Ausgangsspannung: 550 mV an 50 Ω, geregelt
  • Betriebsspannung: 15-24 VDC
  • Stromaufnahme: 30 mA

• Net weight (2.2 lb = 1 kg)
• 0.070 kg / 0 lb 2.5 oz (0.154 lb)

• Price in first year of sale
• 20.50 Euro

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Ralf Rehbein. See "Data change" for further contributors.
