- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radval Co.; New York City
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 320728
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 136B - Emerson Radval Co.; New York
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 170 x 130 mm / 10.6 x 6.7 x 5.1 inch
- Notes
-

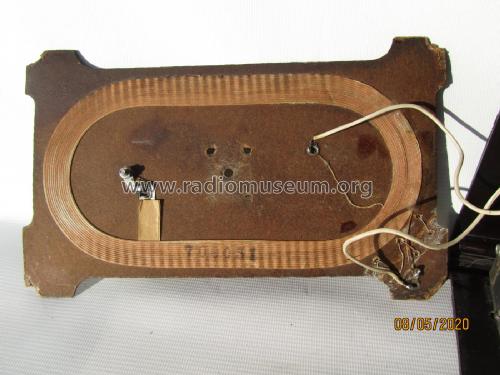

Built-in Loop Antenna
Alternative miniature tubes 12BE6 12BA6 12AT6 50B5 35W4.
Similar to Emerson 653B.
- Net weight (2.2 lb = 1 kg)
- 2.350 kg / 5 lb 2.8 oz (5.176 lb)
- Author
- Model page created by Nick Alexiou. See "Data change" for further contributors.
