104-LW Ch= B8
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 38410
-
- alternative name: Emerson Television
French advertisement 1935
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

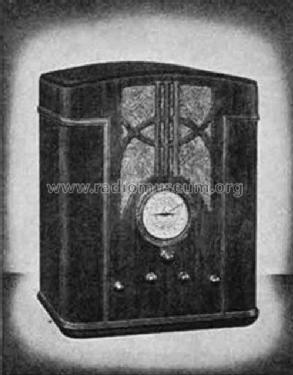

- Model: 104-LW Ch= B8 - Emerson Radio & Phonograph
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 0 x 21 x 0 inch / 0 x 533 x 0 mm
- Notes
-
Longwave (135 - 375 kHz), Broadcast (540 - 1800 kHz) and Shortwave (5.5 - 19.0 MHz) bands. Push-pull audio amplifier. Automatic volume control, tone control. Ingraham cabinet in American Walnut.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (5th edition)
