108 Ch= U-5-A
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1935–1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 38416
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- AC/DC-set / 105-130 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 108 Ch= U-5-A - Emerson Radio & Phonograph
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 7 x 9.6 x 5 inch / 178 x 244 x 127 mm
- Notes
-

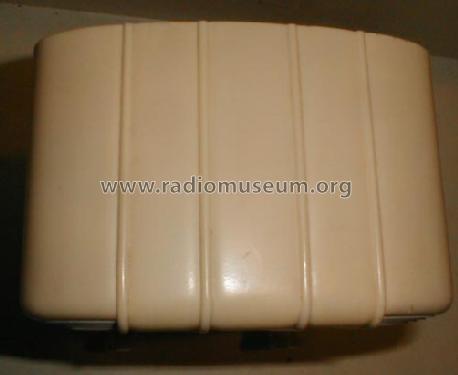

BC (530-1550kHz) and TROP (1500-3800kHz) bands. Model 110 use the same chassis. Color ivory plaskon or bakelite black or brown.
- Price in first year of sale
- 15.00 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98 (and EOR p.22)
- Literature/Schematics (2)
- Machine Age to Jet Age II
- Literature/Schematics (3)
- Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.
