1093F Ch= 120238-D
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 114807
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6T4 6BZ7 6U8 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AL5 12AX7 6V6GT 12AU7 6K6GT 6SN7GT 6BQ6GTA 6AX4GT 1B3GT 5U4G 5U4G 17LP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: 1093F Ch= 120238-D - Emerson Radio & Phonograph
- Notes
-
Emerson model 1093F is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis 120238-D, VHF- UHF tuner 470774 and picture tube 17LP4.
- Literature/Schematics (1)

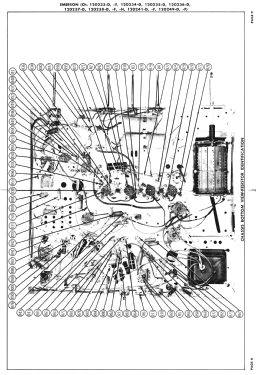

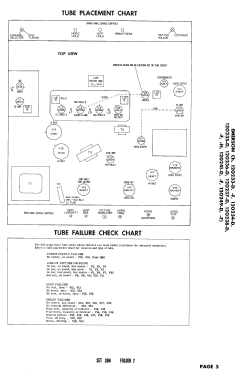

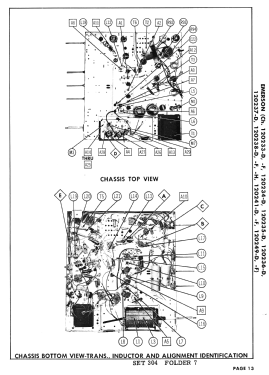

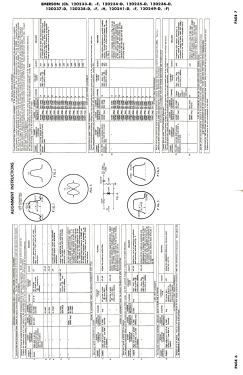

- Photofact Folder, Howard W. SAMS (Set 304 Folder 7 dated 1-56)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
