1105D Ch= 120275-L
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298931
-
- alternative name: Emerson Television

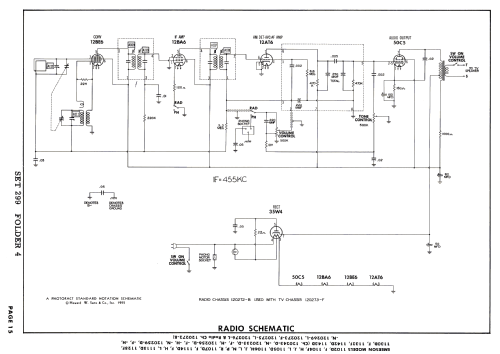

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6AF4A 6BZ7 6U8 3CB6 3CB6 5U8 12BY7A 5U8 5T8 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 12AX4GTA 1B3GT 21AUP4A
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1105D Ch= 120275-L - Emerson Radio & Phonograph
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Emerson model 1105D is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis 120269-L , VHF- UHF-tuner 470810 and picture tube 21AUP4A.
- Mentioned in

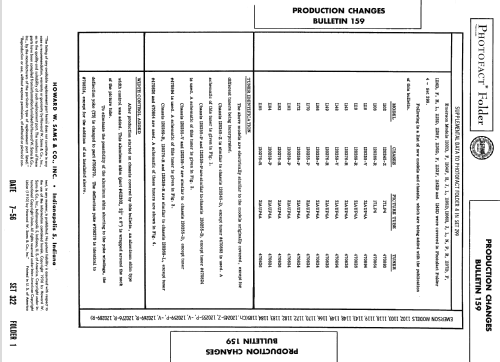

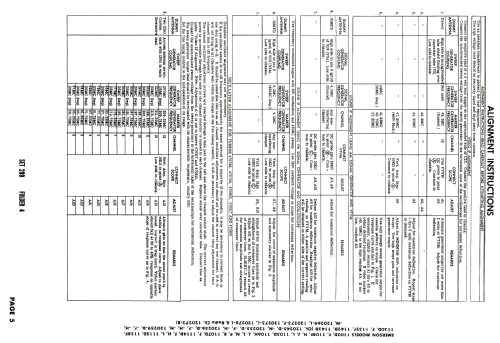

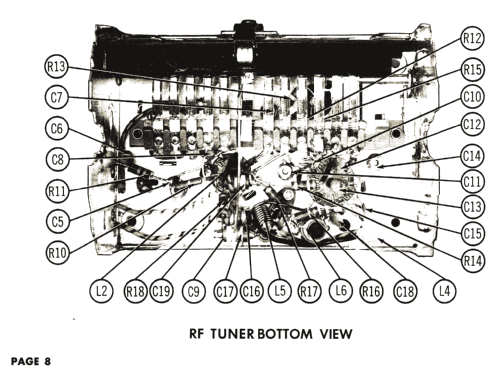

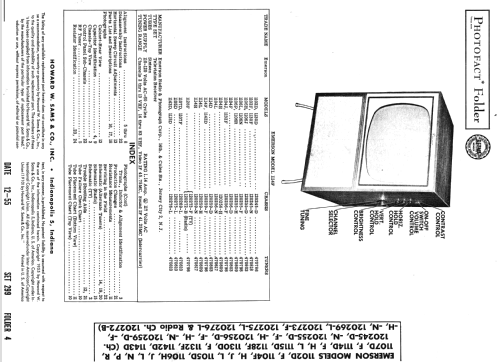

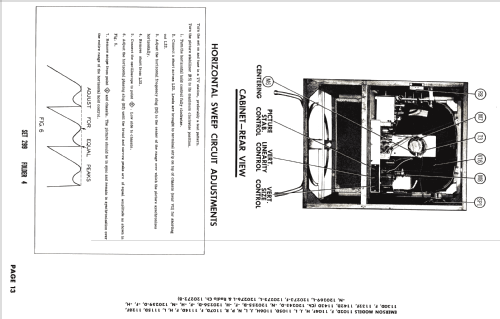

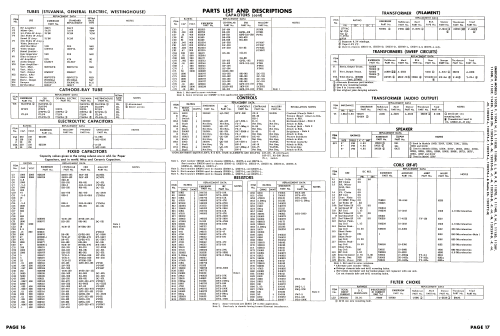

- Photofact Folder, Howard W. SAMS (Set 322 Folder 1)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 299 Folder 4 dated 5-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 318 Folder 1 dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 2068 models, 1146 with images and 1625 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
