1107F Ch= 120269-L
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298965
-
- alternative name: Emerson Television

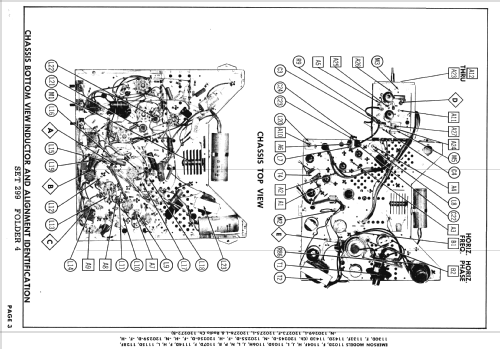

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6AF4A 6BZ7 6U8 3CB6 3CB6 5U8 12BY7A 5U8 5T8 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 12AX4GTA 1B3GT 21AUP4A
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1107F Ch= 120269-L - Emerson Radio & Phonograph
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Emerson model 1107F is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis 120269-L , VHF- UHF-tuner 470810 and picture tube 21AUP4A.
