1108D Ch= 120257-D

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 114368

• • alternative name: Emerson Television

• Picture

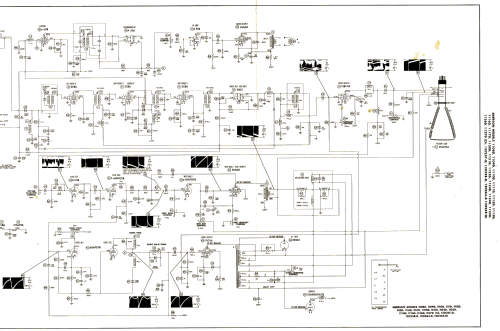

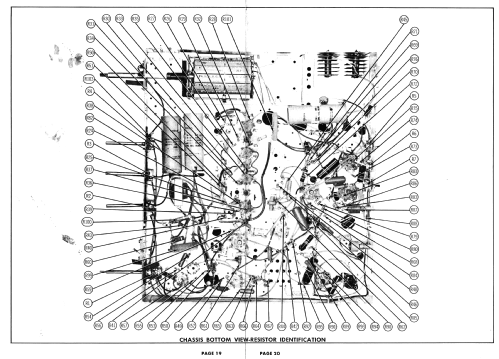

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BZ7 6U8 3CB6 3CB6 3CB6 3AL5 12BY7A 5U8 5T8 5V6GT 6SN7GTB 5V6GT 6SN7GTB 12CU6 12AX4GTA 1B3GT 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1108D Ch= 120257-D - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Notes

• Emerson model 1108D is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 120257-D, VHF tuner 470802 and picture tube 21ALP4A.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 296 Folder 6 Dated 11-55)

• Literature/Schematics (2)

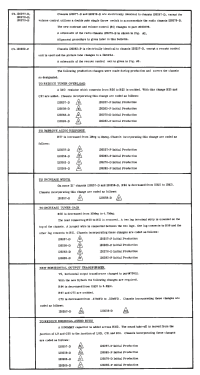

• Photofact Folder, Howard W. SAMS (Set 308 Folder 1 Production Changes Bulletin 146 dated 3-56)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
