1114D Ch= 120259-D

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 299014

• • alternative name: Emerson Television

• Picture

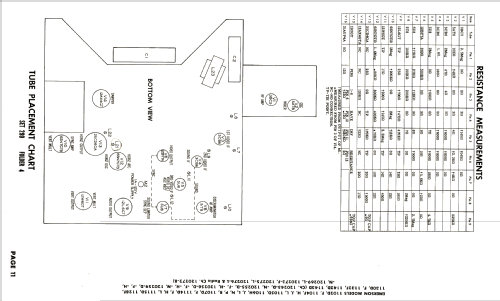

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BZ7 6U8 3CB6 3CB6 5U8 12BY7A 5U8 5T8 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 12AX4GTA 1B3GT 21AUP4A

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1114D Ch= 120259-D - Emerson Radio & Phonograph

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Emerson model 1114D  is a 21" b/w TV equipped with chassis 120259-D, tuner 470803 and picture tube 21AUP4A.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 322 Folder 1)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 299 Folder 4 dated 5-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 318 Folder 1 dated 5-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
