1114L Ch= 210259-H
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 299019
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 3BC5 5U8 3CB6 3CB6 5U8 12BY7A 5U8 5T8 12L6GT 6SN7GTB 12W6GT 6SN7GTB 25CD6GA 12AX4GTA 1B3GT 21AUP4A
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1114L Ch= 210259-H - Emerson Radio & Phonograph
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

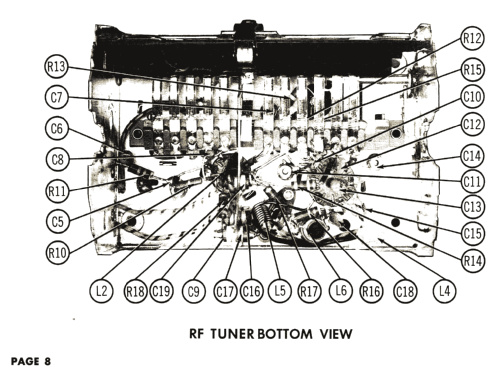

Emerson model 1114L is a 21" b/w TV equipped with chassis 210259-H, tuner 470809 and picture tube 21AUP4A.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 322 Folder 1)
- Literature/Schematics (1)

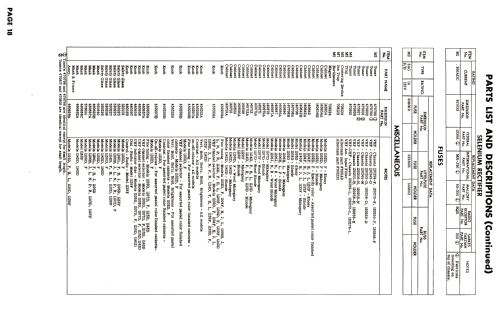

- Photofact Folder, Howard W. SAMS (Set 299 Folder 4 dated 5-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 318 Folder 1 dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
