1176 Ch= 120292-V
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 275092
-
- alternative name: Emerson Television
From service manual.

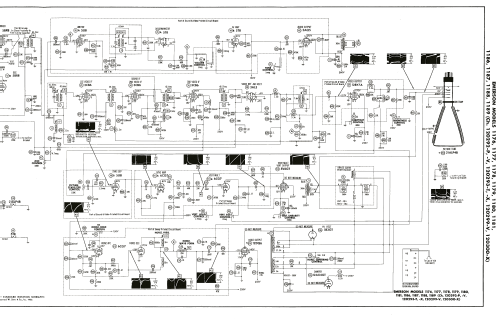

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 4BQ7A 5BR8 3CB6 3CB6 3CB6 3AL5 12BY7A 5U8 5T8 5AQ5 6CG7 5V6GT 6CG7 12DQ6 or 12CU6 12AX4GT 1B3GT 5U4G 21ALP4B
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1176 Ch= 120292-V - Emerson Radio & Phonograph
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The EMERSON model 1176 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 470868, chassis 120292-V and picture tube 21ALP4B.
Cabinet finishes available in Mahogany (140749) & Blonde (140749A).
- Literature/Schematics (1)

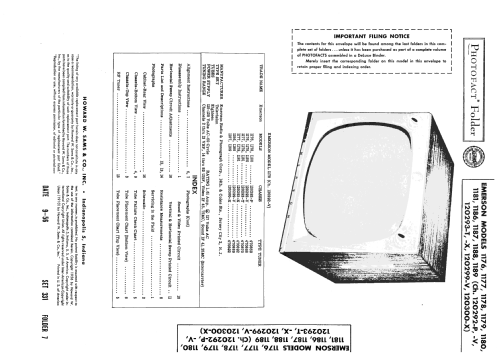

- Photofact Folder, Howard W. SAMS (Set 331 Folder 7 dated 9-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 313 Folder 15-S)
- Literature/Schematics (3)
- - - Manufacturers Literature (Emerson Television Service Note, July 1956.)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 2064 models, 1146 with images and 1621 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
