1190 Ch= 120303-V
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 302882
-
- alternative name: Emerson Television
from service manual.
- Number of Tubes
- 18
- Valves / Tubes
- 4BQ7A 5BR8 3CB6 3CB6 3CB6 3AL5 12BY7A 5U8 5T8 5AQ5 6CG7 5V6GT 6CG7 12DQ6 or 12CU6 12AX4GT 1B3GT 5U4G 21ALP4B
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1190 Ch= 120303-V - Emerson Radio & Phonograph
- Shape
- Tablemodel, with any shape - general.
- Notes
-

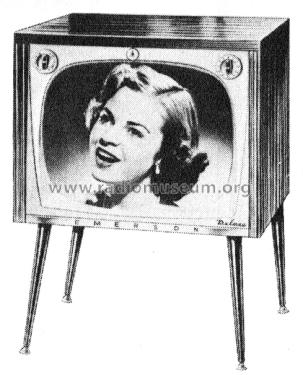

The EMERSON model 1190 is a 21" b/w TV with remote control & US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 470905, chassis 120303-V and picture tube 21ALP4B.
Cabinet finishes available in Mahogany (140749) & Blonde (140749A).
- Literature/Schematics (1)
- - - Manufacturers Literature (Emerson Television Service Note, July 1956.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
