1218 Ch= 120322V
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 185145
-
- alternative name: Emerson Television

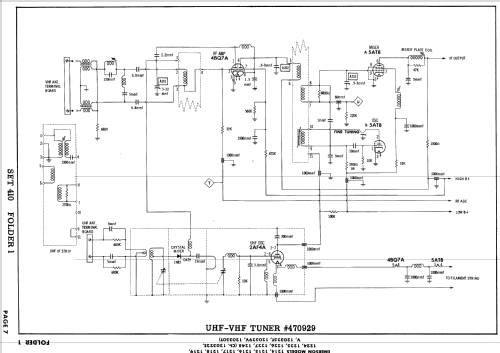

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 21ALP4B
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 1218 Ch= 120322V - Emerson Radio & Phonograph
- Notes
- 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF. Some models are available with 24" Picture Tube 24DP4A.
- Literature/Schematics (1)

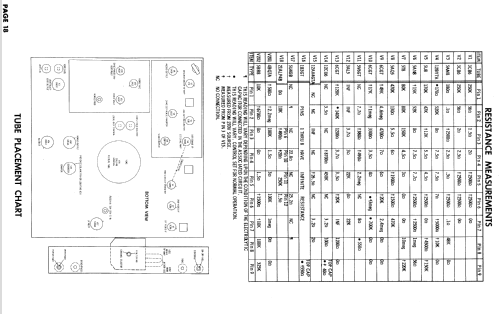

- Photofact Folder, Howard W. SAMS (Date 8-58, Set 410, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
