1276 Ch= 120382H(C)
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 123964
-
- alternative name: Emerson Television
Original-Prospect

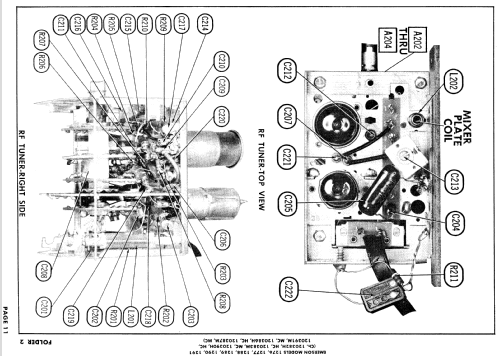

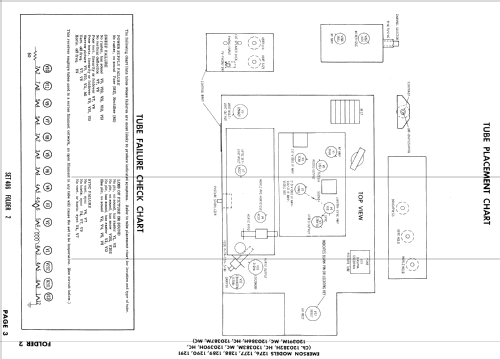

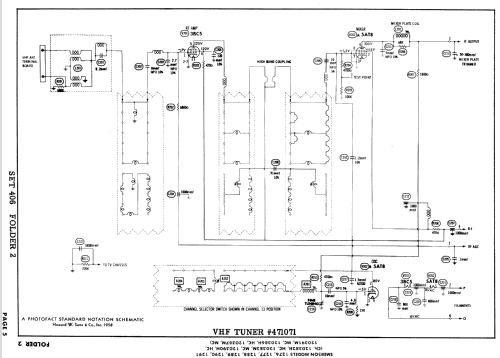

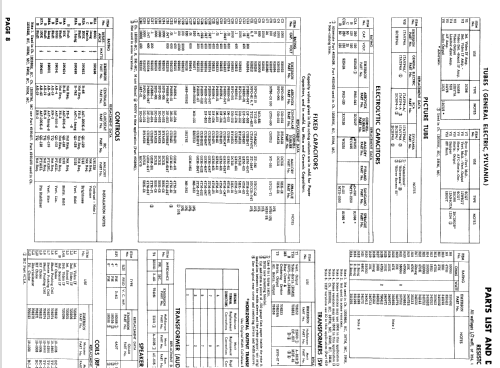

Sams Photofact Folders reference picture.
Emerson Print Ad

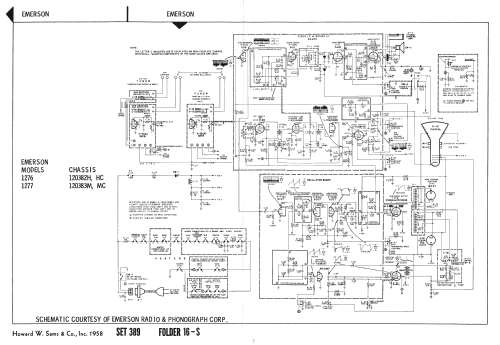

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 3CB6 5AM8 12BY7A 5U8 3AV6 12C5 6CG7 12W6GT 6CG7 25DN6 or 25CD6GB 12AX4GTA 1B3GT 5AT8 3BC5 17AVP4A
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1276 Ch= 120382H - Emerson Radio & Phonograph
- Shape
- Tablemodel, low profile (big size).
- Notes
-
17 " b/w TV with US standard VHF tuner, Magic-Memory touch control, styling in a variety of colors.
Also available as Model Emerson 1277 (UHF-VHF)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 406, Folder 2)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 389 Folder 16-S dated 2-58)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
