1282 Ch= 120412HC
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 184874
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 21DAP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 1282 Ch= 120412HC - Emerson Radio & Phonograph
- Notes
- 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF.
- Literature/Schematics (1)

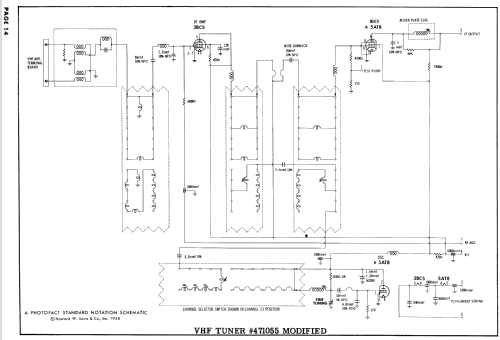

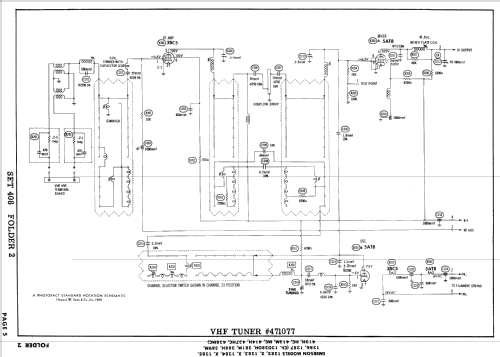

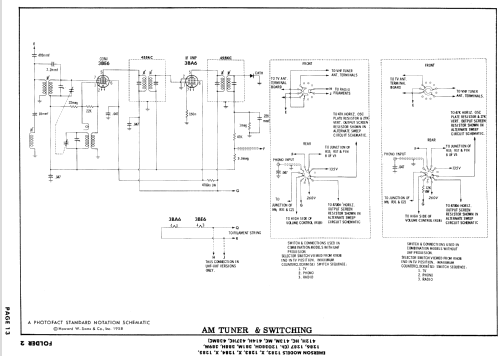

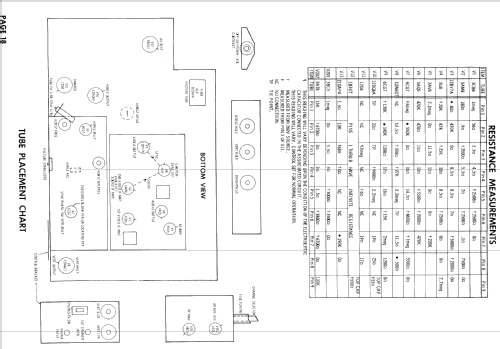

- Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 2)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
