- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 351870
-
- alternative name: Emerson Television
Back Off Case

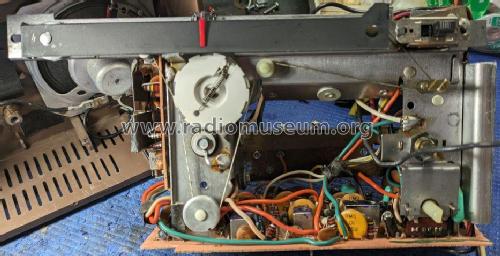

Chassis Front, only electrolytic replaced.
Chassis-Top tuning Adjustments
- Number of Transistors
- 11
- Semiconductors
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 3.5 inch = 8.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 31T16 - Emerson Radio & Phonograph
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 6 x 4 inch / 279 x 152 x 102 mm
- Notes
-
Note: The model number 31T16 is not known with certainty. The SAMS reference includes the Emerson 31T16.
The part designations on the PCB of this radio match those of the Beitman schematic for Emerson model 31T12, chassis 120818.
- Net weight (2.2 lb = 1 kg)
- 5 lb 5 oz (5.313 lb) / 2.412 kg
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 871, Folder 5, April 1967)
- Author
- Model page created by Thomas Ranz. See "Data change" for further contributors.
