• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82944

• • alternative name: Emerson Television

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

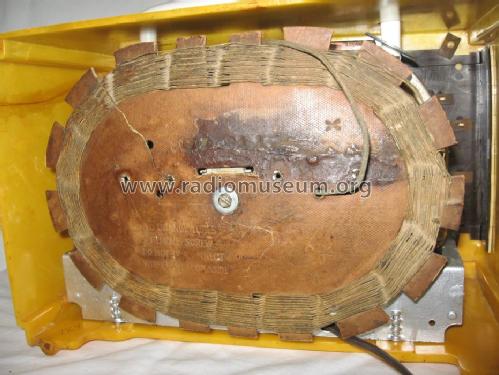

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

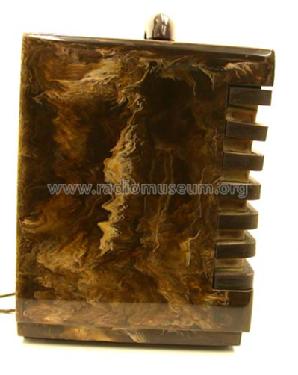

• Material
• Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).

• from Radiomuseum.org
• Model: 400 Aristocrat - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 7 x 6 inch / 279 x 178 x 152 mm

• Notes
• Aristocrat and Patriot are virtually similar. There is only a distinction in the colors as follows:
  PATRIOT: only these 3 color combinations according to te US flag:
  - Red w/white&blue trim;
  - Blue w/red&white trim;
  - White w/red&blue trim.
  Star knobs.
  Any other color/combination is an ARISTOCRAT ! Originally all Aristocrat models had a brown handle and brown knobs (bullet type, not Star!). Further combinations, e.g. black case with star knobs look interesting, but are obviously not original and were easily created by collectors/antique dealers.

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Mentioned in
• Sideli: Classic Plastic Radios of the 30´s and 40´s

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
