• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112666

• • alternative name: Emerson Television

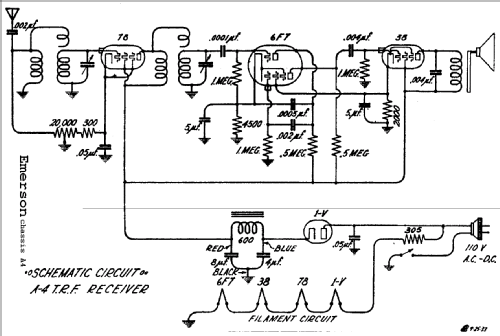

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 78 6F7 38 1-V

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

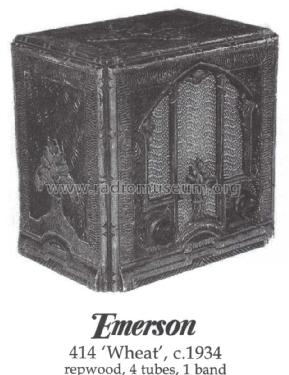

• Model: 414 Ch= A-4 [Wheat] - Emerson Radio & Phonograph

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 185 x 185 x 145 mm / 7.3 x 7.3 x 5.7 inch

• Notes

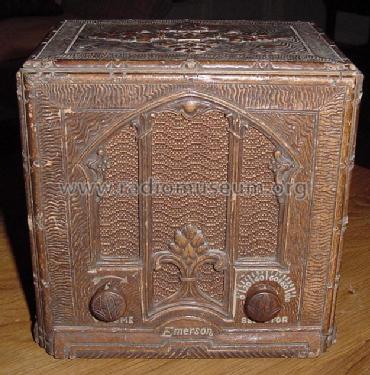

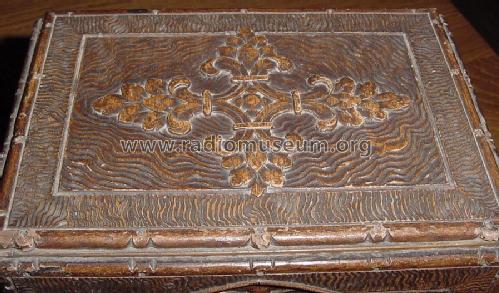

• Pressed wood, ornate case with fleur-de-lis designs. Pressed wood (repwood), ornate case with fleur-de-lis designs. Same A-4 chassis as "Mickey Mouse".

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Rider's Perpetual, Volume 4 = ca. 1934 and before (see model 411)

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
