- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 86614
-
- alternative name: Emerson Television
Scanned from the Emerson Folder for 1942.
Scanned from the Emerson Folder for 1942.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 425 - Emerson Radio & Phonograph
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.25 x 8 x 6 inch / 260 x 203 x 152 mm
- Notes
-
Ingram cabinet.-

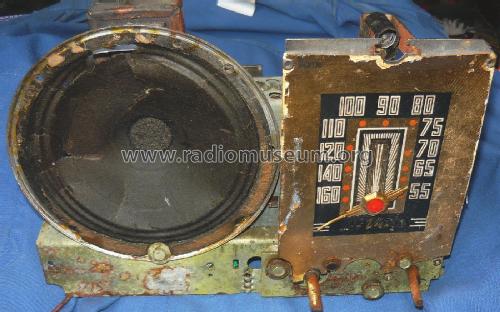

On pictures ID 2033951 and 2033954-55 a dial can be seen indicating RCA Victor !
Taking in account that the respective apparatus is 100% Emerson ( according to the serial number, part number of the dial, number of the speaker etc. ) it is evident that the printing house committed an historic error which for some time remained undetected by Emerson.The paper dial shows no signs of having ever been removed.
The database contains similar but not identical RCA Victor dials, which may have contributed to the mistake by the printer.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Source of data
- Machine Age to Jet Age II
- Literature/Schematics (3)
- Emerson Folder for 1942.
