• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38477

• • alternative name: Emerson Television

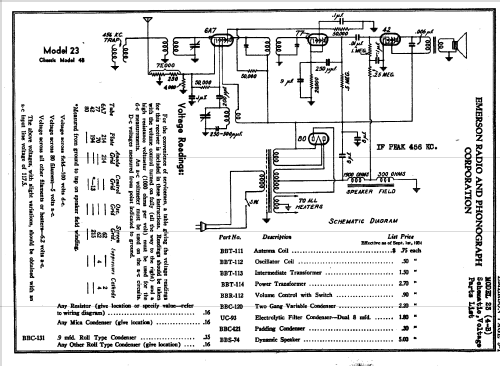

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A7 77 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 23 Ch= 4-B - Emerson Radio & Phonograph

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 290 x 200 x 160 mm / 11.4 x 7.9 x 6.3 inch

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 5 = ca. 1934 and before (page 1)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 64.)
