515 Ch= 120006 octal tubes
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1946–1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 38524
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material

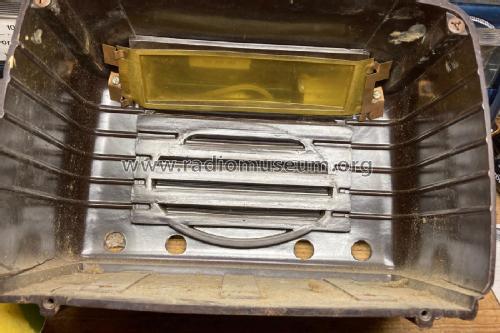

- Bakelite case
- from Radiomuseum.org
- Model: 515 Ch= 120006 [octal tubes] - Emerson Radio & Phonograph

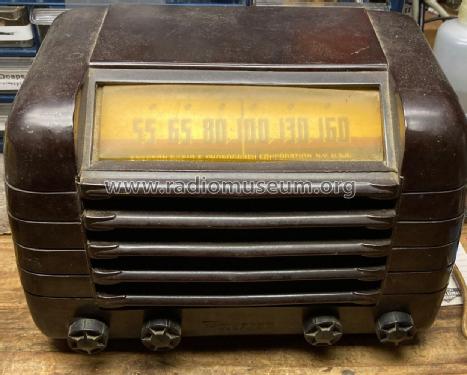

- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-

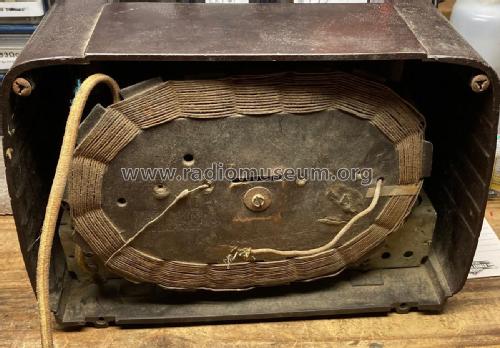

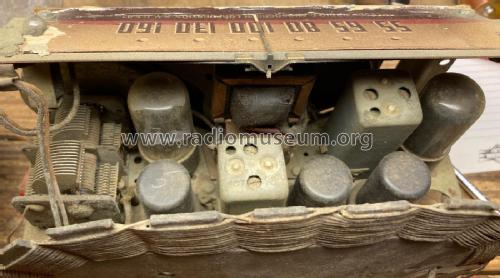

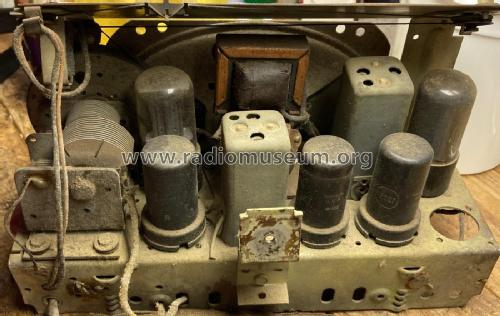

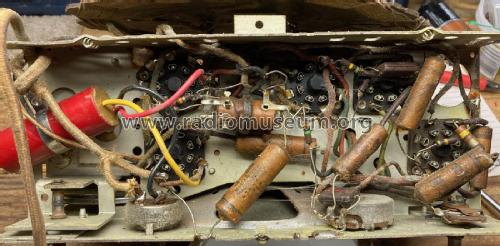

BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Chassis No.120006 has Octal tubes. See also Riders 15-11 and 15-12. The Emerson model 512, 515, 516 and 550 use the same chassis - an older version and a newer. This is the older chassis of the Emerson model 515 with octal tubes.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Collector's Guide to Antique Radios (6th edition) (The Radio CollectorGrinder, 1955)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-11)
- Literature/Schematics (2)

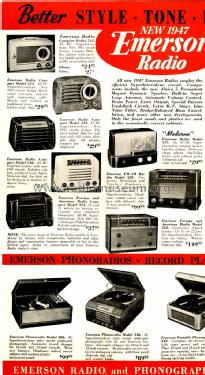

- Radio Retailing (Radio & Television R.) (November 1946 page 51.)
- Literature/Schematics (3)
- Emerson Radio and Television Service Manual (Page 36)
- Literature/Schematics (4)
- Emerson Folder for 1947, Folder Form. 48-107, 10-47 for 1948.
