• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38527

• • alternative name: Emerson Television

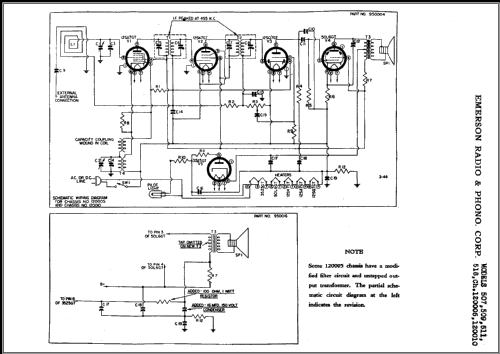

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 or 12SA7GT 12SK7 or 12SK7GT 12SQ7 or 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 518 Ch= 120005 [octal tubes] - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• BC Band Tuning Range: 540-1620kHz. Built-in loop antenna. Chassis No.120005 has glass or metal Octal tubes.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Emerson Radio and Television Service Manual (Page 25)
