• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38550

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

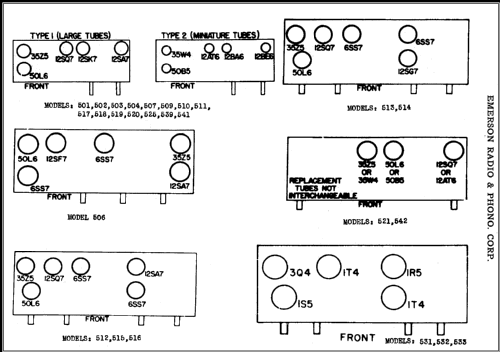

• 12SA7GT 12SK7GT 12SQ7GT 50L6GT or 50A5 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

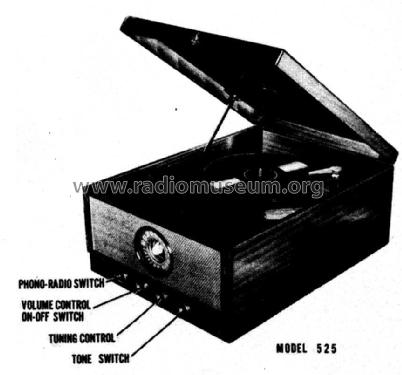

• Model: 525 Ch= 120037 - Emerson Radio & Phonograph

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• BC (540-1620kHz), Built-in loop antenna. Walnut cabinet. Completely automatic.

• Price in first year of sale
• 99.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Radio Retailing (Radio & Television R.) (March 1947 page 3. May 1947 page 47.)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 08, 1948

• Literature/Schematics (2)

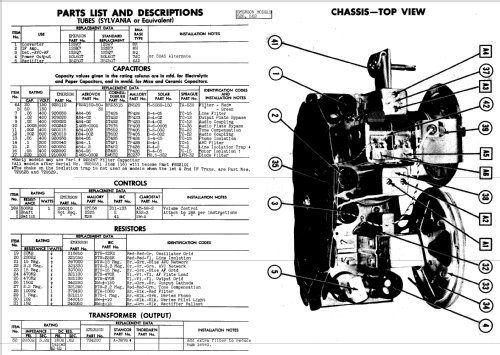

• Emerson Radio and Television Service Manual (Page 55)

• Literature/Schematics (3)

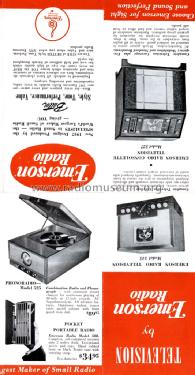

• Emerson Folder for 1947.

• Other Models

• Here you find 2080 models, 1148 with images and 1638 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
