529-9 Ch= 120028
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1946 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 214547
-
- alternative name: Emerson Television

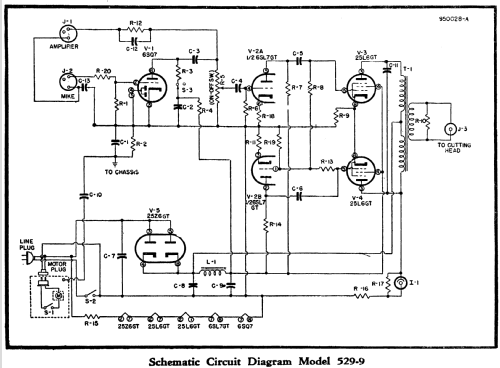

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: 529-9 Ch= 120028 - Emerson Radio & Phonograph
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- Portable Recorder.
- Literature/Schematics (1)
- Emerson Radio and Television Service Manual (Page 65)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
