• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38607

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6U5 or 6G5 6SQ7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 9 inch = 22.9 cm

• Material
• Wooden case

• from Radiomuseum.org

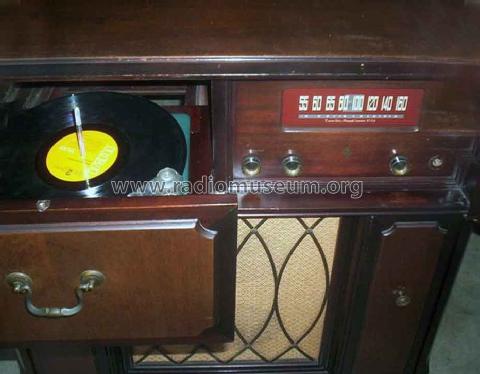

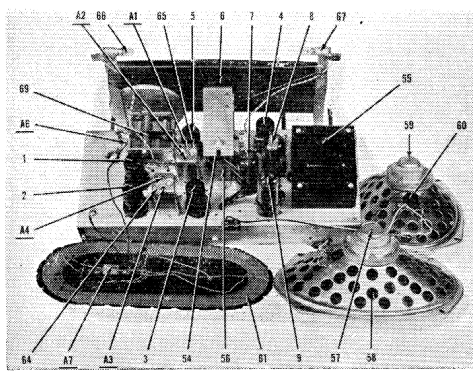

• Model: 573 Ch= 120039B - Emerson Radio & Phonograph

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• BC (540-1620kHz) band. Tuning eye. Push-pull audio amplifier. Qty(2) PM Elliptical 6" x 9" speakers. Cabinet is Mahogany.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference

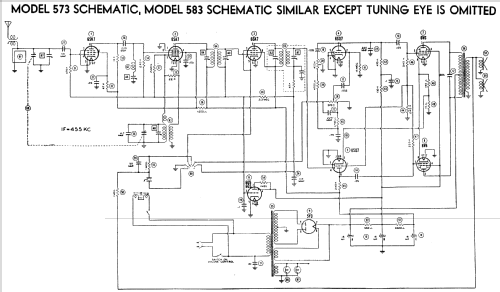

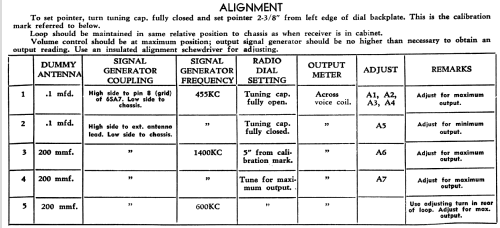

• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

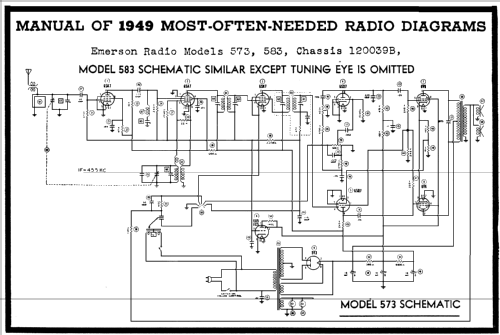

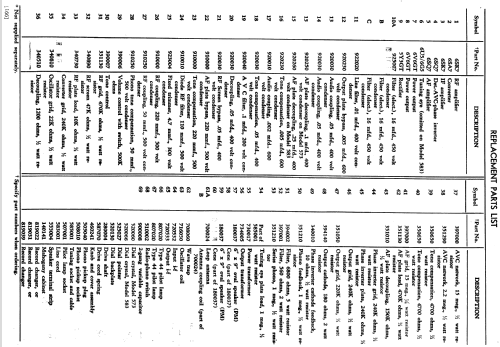

• Beitman Radio Diagrams, Vol. 09, 1949

• Literature/Schematics (2)

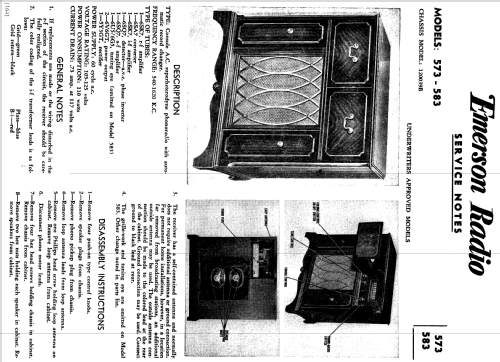

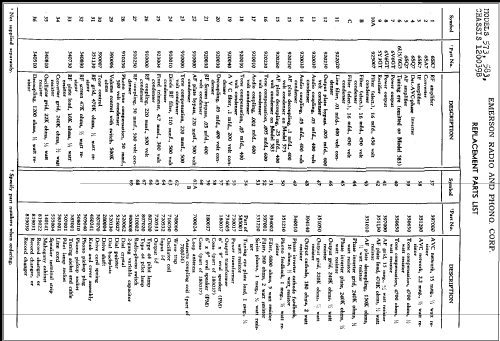

• Emerson Radio and Television Service Manual (Page 164)

• Other Models

• Here you find 2080 models, 1148 with images and 1638 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
