Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 38610
-
- alternative name: Emerson Television

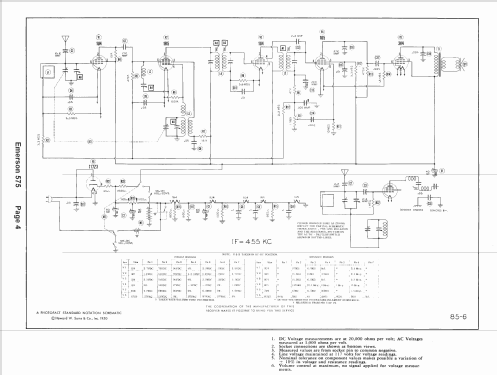

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 105-125; 9; 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 575 Ch= 120068B - Emerson Radio & Phonograph
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
BC (540-1620kHz) band. Built-in loop antenna as first RF circuit. 117Z3 used for AC/DC operation.
- Price in first year of sale
- 34.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)

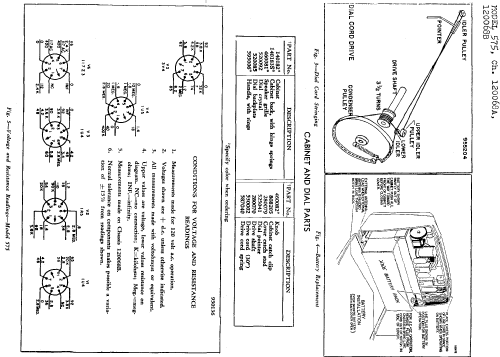

- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (3)
- Emerson Folder Form. No. 50-628 for "New 1950".
