• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38629

• • alternative name: Emerson Television

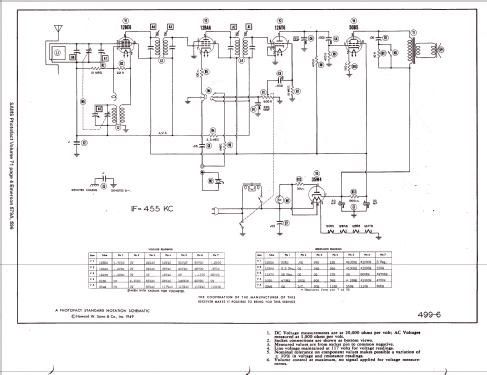

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 596 Ch= 120034A - Emerson Radio & Phonograph

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• BC (540-1620kHz) band. Built-in loop antenna. Cabinet is Walnut.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in

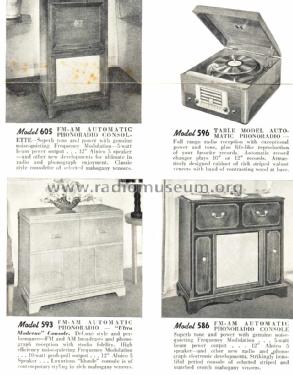

• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 10, 1950

• Literature/Schematics (2)

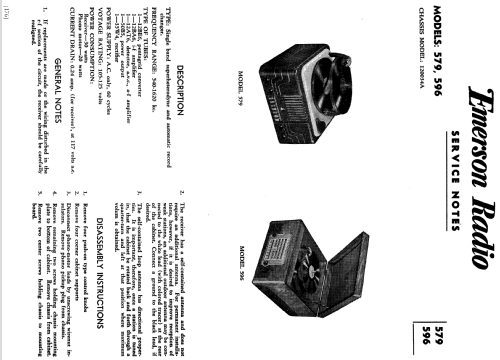

• Emerson Radio and Television Service Manual (Page 176)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (vol.7, Folder 499-6, 5/1949)

• Literature/Schematics (4)
• Emerson Folder Form 49-102, 8-48 for 1949.
