• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38635

• • alternative name: Emerson Television

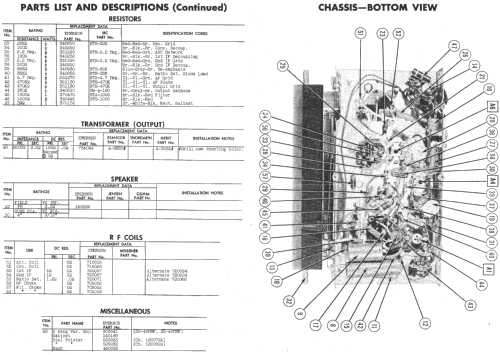

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA7 12BA6 12BA6 12S8GT 35B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)

• Tuned circuits
• 8 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 602A Ch= 120072A - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• FM (88-108MHz) band. Color=Maroon

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Mentioned in
• Antique Radios, Johnson 1986

• Literature/Schematics (1)
• Emerson Radio and Television Service Manual (Page 207)
