• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38641

• • alternative name: Emerson Television

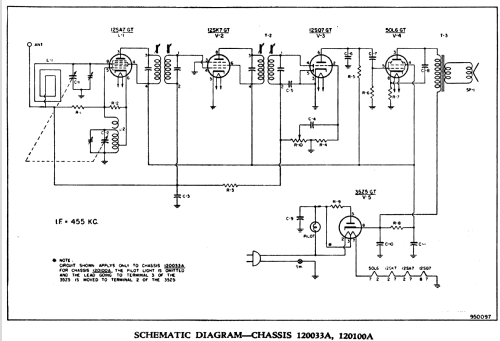

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

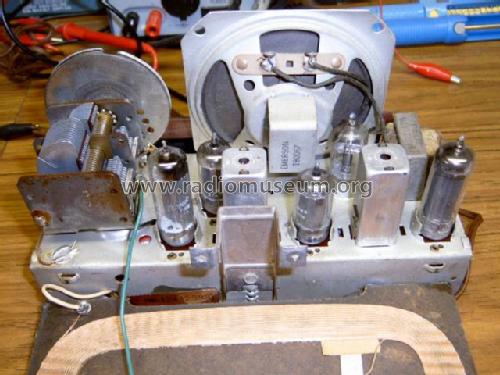

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

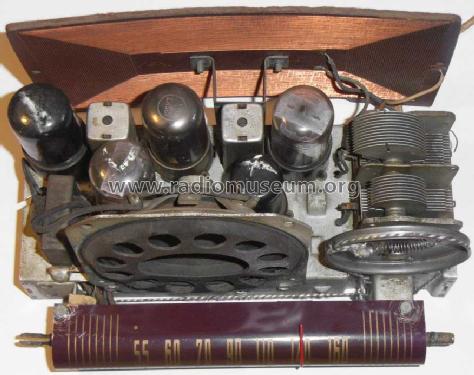

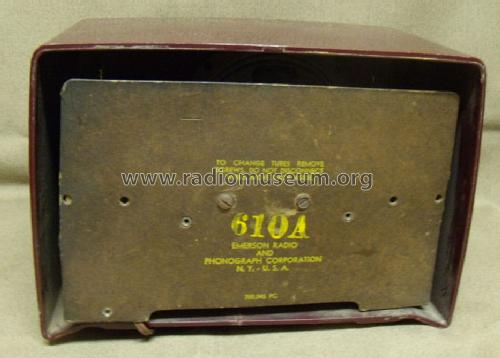

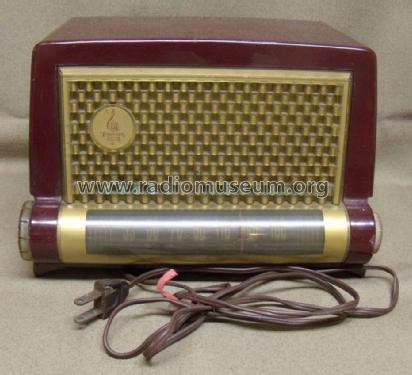

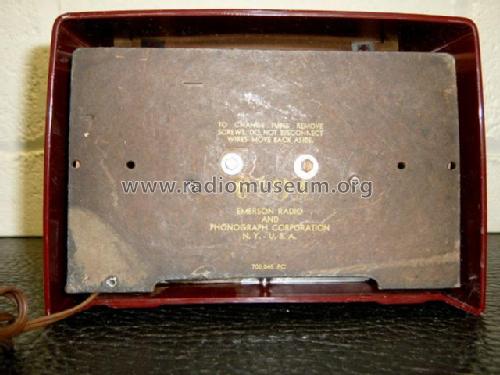

• Model: 610 Ch= 120100A - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9 x 6.25 x 5.5 inch / 229 x 159 x 140 mm

• Notes

• BC (540-1620kHz) band. Built-in loop antenna. Same model with chassis 120100B also. Available in Maroon plastic $19.95 or Ivory plastic $22.95.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference

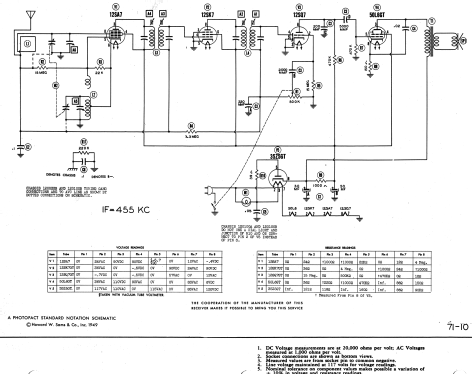

• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)

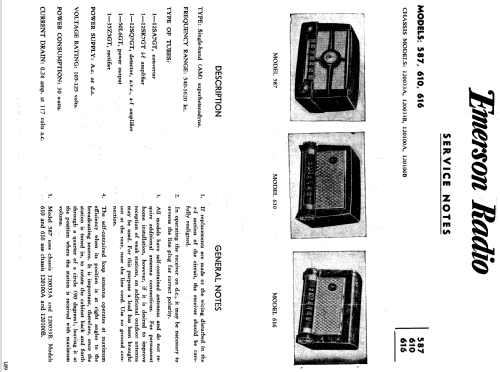

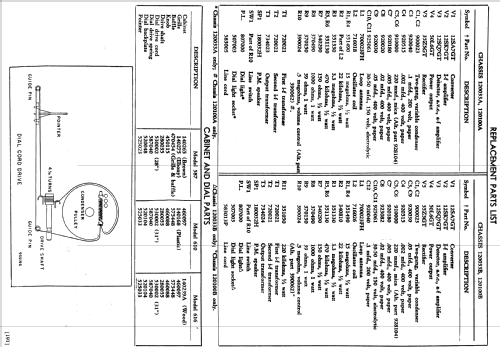

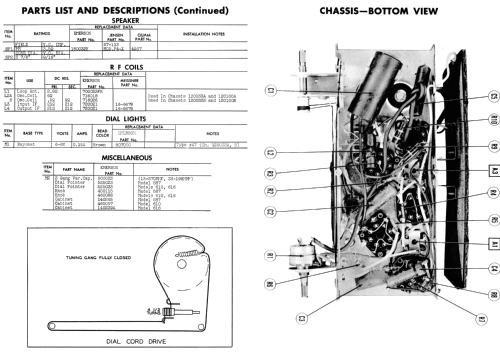

• Emerson Radio and Television Service Manual (Page 189)

• Literature/Schematics (3)

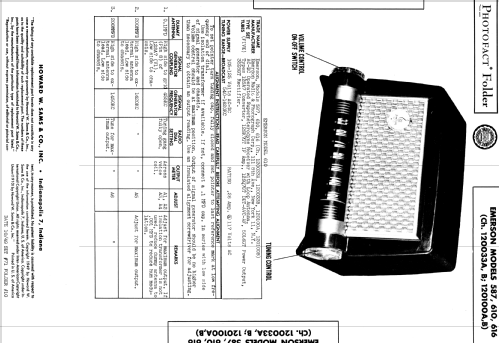

• Emerson Folder Form. No. 50-628 for "New 1950".

• Other Models

• Here you find 2064 models, 1146 with images and 1621 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
