631 Ch= 120109B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1949/1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 212446

• • alternative name: Emerson Television

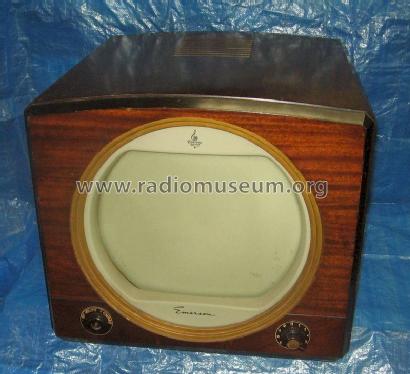

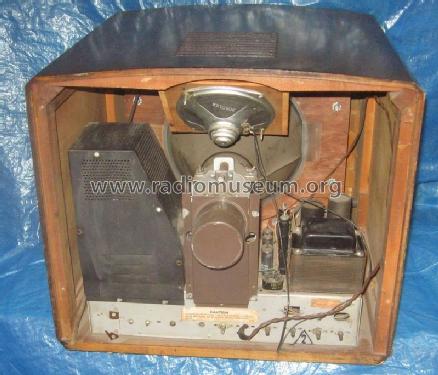

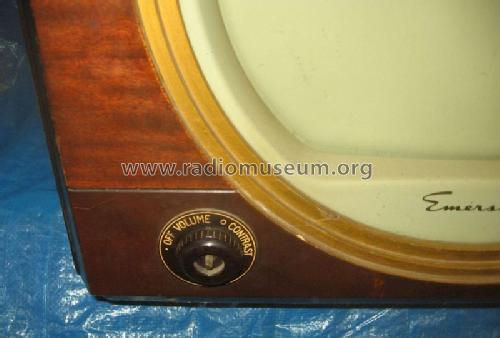

• Picture

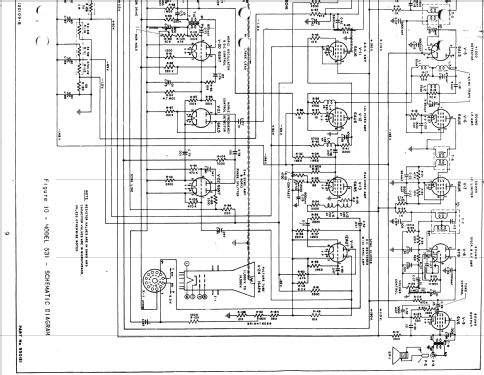

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

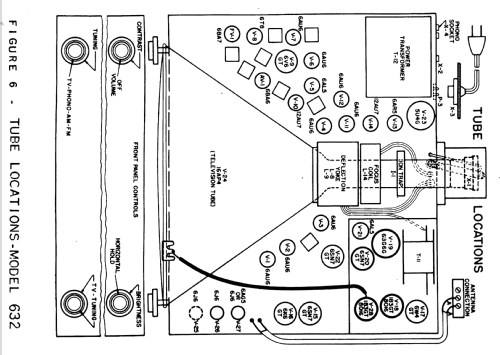

• Valves / Tubes
• 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6T8 6V6GT 12AU7 6AU6 6AU6 6AR5 12AU7 6SN7GT 6K6GT 6W4GT 1B3GT 1B3GT 6BG6G 6SN7GT 6AL5 6SN7GT 5U4G 16AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

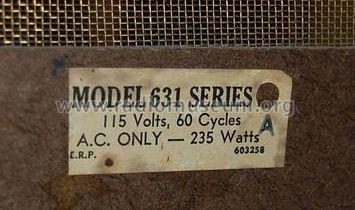

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 631 Ch= 120109B - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 22 x 40 x 22 inch / 559 x 1016 x 559 mm

• Notes

• The Emerson 631 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 120109B, VHF tuner 470512 and picture tube 16AP4.

• Price in first year of sale
• 399.50 $

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (3)
• Emerson Folder Form. No. 50-628 for "New 1950".

• Author
• Model page created by a member from A. See "Data change" for further contributors.
