660B Ch= 120133-B
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 270921
-
- alternative name: Emerson Television
Sams Photofact Set 131 Folder 6 Date 5-51
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BC5 or 6CB6 or 6AG5 6J6 6AU6 6AU6 6AU6 12AU7 or 12AT7 12AU7 6AU6 6AU6 6S8GT 25L6GT 12BH7 12SN7GT 19BG6G 25W4 1X2 12LP4A or 12LP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 660B Ch= 120133-B - Emerson Radio & Phonograph
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Emerson 660B is a 12" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 120133-B, VHF-tuner 470636 and picture tube 12LP4A or 12LP4.
- Mentioned in

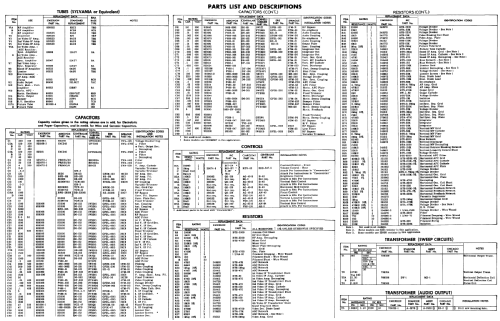

- Photofact Folder, Howard W. SAMS (Date 5-1951, Set 131, Folder 6)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 121 folder 1A dated 1-51)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 131, folder 6, dated 5-51)
- Author
- Model page created by Thomas Wuwer. See "Data change" for further contributors.
