666B Ch= 120135-B & Radio Ch= 120132-B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 347668

• • alternative name: Emerson Television

• Picture

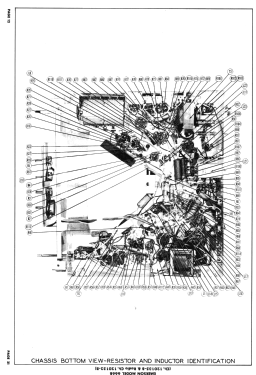

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 31

• Valves / Tubes
• 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AC7 6AU6 6AU6 6AL5 or 6T8 6AV6 6V6GT 12AU7 6SN7GT or 12AU7 6SN7GT 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 6BJ6 12AT7 12BE6 6BJ6 6BJ6 6BH6 19T8 50L6 16GP4B or 16GP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 666B Ch= 120135-B & Radio Ch= 120132-B - Emerson Radio & Phonograph

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Emerson model 666B is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 120135-B and radio chassis 120132-B, a VHF tuner and picture tube 16GP4B or 16GP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 133, folder 5, dated 5-51)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 148, folder 1, dated 10-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
