686F Ch= 120143B

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 350438

• • alternative name: Emerson Television

• Picture

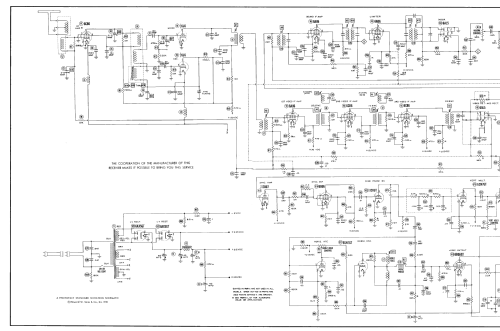

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6CB6 6CB6 6AL5 6CB6 6AU6 6AU6 6AL5 6AV6 6V6GT 12AU7 6AU6 6SN7GT 6W6GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 6AX5GT 6AX5GT 17BP4A or 17CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117V = 110 -120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 686F Ch= 120143B - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Notes

• Emerson model 686F is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 120143B, VHF tuner 470658 and picture tube 17BP4A or 17CP4.

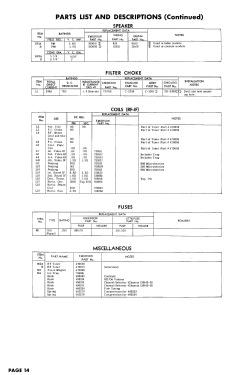

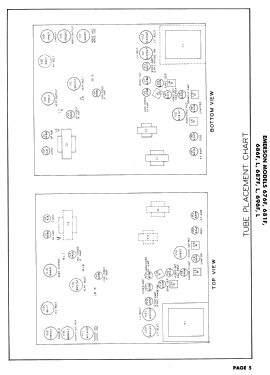

• Literature/Schematics (1)

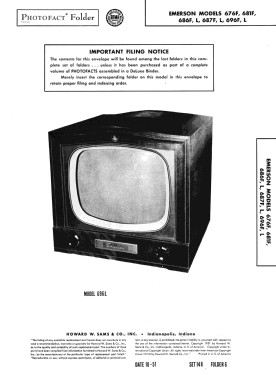

• Photofact Folder, Howard W. SAMS (set 148, folder 6, dated 10-51)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 184, folder 1, dated 11-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
