• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 358281

• • alternative name: Emerson Television

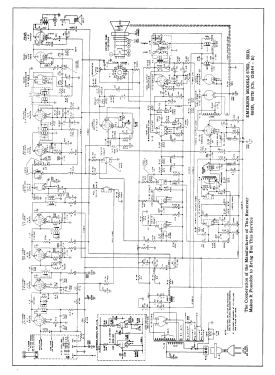

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6CB6 or 6BC5 or 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AV6 6AU6 6AU6 6AL5 6AU6 6V6GT 6AC7 12AU7 12AU7 or 6SN7GT 6K6GT 6SN7GT 6BG6G 1B3GT 6W4GT 5U4G 17CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 696B Ch= 120144B - Emerson Radio & Phonograph

• Shape
• Console with any shape - in general

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 131, folder 1A, dated 1-51)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 182, folder 1, dated 10-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
